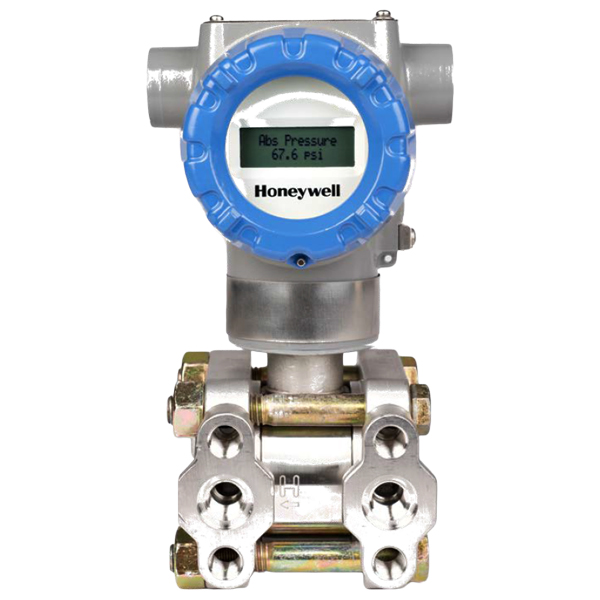

Part Number: STD720-E1AS1AS-1-C-AHB-11S-3Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD720 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel
316L Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | A | None
None (1/4" NPTF female thread Std) |
| Bolt/Materials | S | 316 SS |
| Vent/Drain Type/Location | 1 | Head Type: Single Ended
Vent Type: None
Location: None
Vent Material: None |
| Gasket Material | A | Teflon? or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure - 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(1) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | A | Material: Polyster Powder Coated Aluminum
Connection: 1/2 NPT
Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc
Digital Protocol: HART Protocol |
| Customer Interface Selections | B | Indicator: Basic
Ext Zero, Span & Config Buttons: None
Languages: English |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled
Fail Mode: High> 21.0mAdc
High & Low Output Limits:(2) Honeywell Std (3.8 - 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket
Material: 316 SS |
- Left side/Right side as view ed from the customer connection perspective
- NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 6 - 8
- Shipping Weight: 6 Kg
